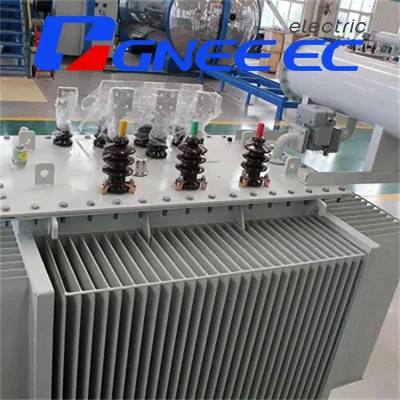

Peb Theem Roj Immersed Transformer
Muaj lus nug? GNEE cov neeg muag khoom muaj nyob rau hauv kev sib tham tam sim no
Xa E-mail:sales@gneeelectric.com
Tel:+8615824687445
Peb theem roj immersed transformer qhia
Peb theem roj immersed transformer, tseem hu ua roj immersed transformer, yog ib tug transformer ntaus ntawv uas siv roj txias los txo qhov kub ntawm lub transformer. Tsis zoo li qhuav transformers, lub cev tseem ceeb ntawm cov roj immersed transformer yog ntsia nyob rau hauv ib tug welded steel roj tank ntim nrog insulating roj. Thaum cov roj immersed transformer nyob rau hauv lub lag luam, lub tshav kub los ntawm lub kauj thiab hlau tub ntxhais yog thawj zaug hloov mus rau hauv insulating roj thiab ces mus rau hauv lub txias nruab nrab. Raws li lub peev xwm, nws tuaj yeem muab faib ua immersed Free cooling transformer thiab immersed cua txias transformer.
Peb-theem roj-immersed transformer txais yuav cov roj puv ntim ntim cov roj tank plhaub, uas yoog rau kev nthuav dav ntawm cov roj nrog nws tus kheej elasticity thiab yog cov roj ntim ruaj khov. Roj-immersed transformers tau siv dav hauv ntau yam khoom siv hluav taws xob.
Roj immersed transformer
|
Rated Peev Xwm (kVA) |
Kev sib txuas pab pawg cim |
Voltage sib xyaw (kV) |
Tsis muaj load tam sim no% |
Tsis muaj load poob W |
Load poob |
Luv-circult impedance% |
|
|
(H.V.) |
(L.V.) |
||||||
|
10 |
Yyn0 los yog Dyn11 |
6±5% |
0.4 |
3.8 |
55 |
310 |
4 |
|
20 |
3 |
80 |
475 |
4 |
|||
|
30 |
2.1 |
100 |
600 |
4 |
|||
|
50 |
2 |
130 |
870 |
4 |
|||
|
63 |
1.9 |
150 |
1040 |
4 |
|||
|
80 |
1.8 |
180 |
1250 |
4 |
|||
|
100 |
1.6 |
200 |
1500 |
4 |
|||
|
125 |
1.5 |
240 |
1800 |
4 |
|||
|
160 |
1.4 |
290 |
2200 |
4 |
|||
|
200 |
1.3 |
340 |
2600 |
4 |
|||
|
250 |
1.2 |
400 |
3050 |
4 |
|||
|
315 |
1 |
480 |
3650 |
4 |
|||
|
400 |
1 |
570 |
4300 |
4 |
|||
|
500 |
1 |
680 |
5150 |
4 |
|||
|
630 |
0.9 |
810 |
6200 |
4.5 |
|||
|
800 |
0.8 |
980 |
7500 |
4.5 |
|||
|
1000 |
0.7 |
1150 |
10300 |
4.5 |
|||
|
1250 |
0.6 |
1360 |
12000 |
4.5 |
|||
|
1600 |
0.6 |
1640 |
14500 |
4.5 |
|||
|
2000 |
0.6 |
1720 |
17800 |
5.5 |
|||
|
2500 |
0.5 |
12020 |
20700 |
5.5 |
|||
Ib txwm ua hauj lwm tej yam kev mob ntawmroj-immersed zog transformers
1. Qhov siab tsis tshaj 1000m sab hauv tsev lossis sab nraum zoov.
2. Qhov siab tshaj plaws ambient kub +40 degree thiab qhov siab tshaj plaws txhua hnub nruab nrab kub +30 degree .
3. Qhov nruab nrab txhua xyoo kub siab tshaj +20 degree thiab qis tshaj kub -25 degree .
4. Raws li cov neeg siv yuav tsum tau, transformers ua hauj lwm nyob rau hauv tshwj xeeb tej yam kev mob ntawm kev siv yuav muab.
11kV Peb PhaseRoj Immersed Distribution TransformerQauv thiab muaj pes tsawg leeg
Lub hauv paus tseem ceeb ntawm peb-theem roj-immersed transformer yog tsim los ntawm cov tub ntxhais hlau kaw thiab winding teem rau ntawm cov tub ntxhais hlau. Tsis tas li ntawd, muaj cov roj tank, roj conservators, casings, respirator, explosion-proof pipes, radiators, tap changers, gas relays, thermometers, oil purifiers, etc.
Roj Transformer Khoom Zaub
S11 Series Peb Theem Roj Immersed Distribution Transformer Nta
1. Amorphous hlau core zoo heev txo tsis muaj load poob - lub zog txuag
Cov tub ntxhais transformer yog ua los ntawm amorphous alloy sawb, thiab tsis muaj load poob yog li ntawm 65% qis dua li ntawm S11.
2. Lub tshuab hluav taws xob qis qis muaj qhov muaj peev xwm tiv taus luv luv Circuit Court - kev nyab xeeb
Qhov qis-voltage winding ntawm lub transformer yog qhov txhab ntawm lub raj xaim, uas txhim kho lub peev xwm ntawm transformer kom tiv taus luv luv Circuit Court.
3. Transformer tu-dawb - yooj yim
Kev siv cov ntsaws ruaj ruaj zoo nrog lub peev xwm tiv thaiv kev laus ua rau lub tshuab hluav taws xob tsis tu ncua.
4. Kev ua haujlwm siab rwb thaiv tsev - ruaj khov
Txais cov txheej txheem zoo rwb thaiv tsev, qib siab kub tsis kam, mus txog qib F.
Roj immersed transformer Khoom Zaub
Peb theem roj immersed transformer ntim & shipping
GNEE Roj Immersed Transformer Hoobkas
Neeg tuaj xyuas
GNEE teams
Vim Li Cas XaivgNEEPeb theem roj immersed transformer?
Peb yog cov chaw tsim khoom siv hluav taws xob thiab cov khoom siv hluav taws xob, uas tau ua haujlwm hauv kev lag luam hluav taws xob rau ntau tshaj 10 xyoo. Peb qhov zoo dua yog tias peb tuaj yeem tsim cov tshuab hloov pauv raws li ntau tus qauv, xws li ANSI / IEEE, CSA, IEC, AS / NZ thiab lwm yam. Koj yuav tau txais cov lus teb ceev tshaj plaws thiab cov kev pabcuam zoo tshaj ua haujlwm nrog peb.
